Description

Submittal Sheet

sb-multif-lmn157hvt-08-14_20140910122520.pdf

LG's NEW Multi-F Systems now include LGRED° Heat Technology featuring low temperature heating down to -13°F!

LG's new line of energy efficient multi-zone systems is here. The entire line features LGRED° Heat Technology, making each unit a perfect solution for cold weather climates. The LG LMU300HHV can be operated in the heating mode when temperatures get down as low as -13°F and it will perform at 100% heating capacity! The system will also provide low ambient cooling to 14°F. Add a Low Ambient Kit (sold separately) for cooling operation down to -4°F.

The LG LMU300HHV is a 30,000 BTU, configurable, multi-zone mini split air conditioning and heating system. Flexibility is part of the name with LG's Flex Multi-F Quad Zone Multi-Split air conditioner. The LMU300HHV gives you the flexibility of choosing two, three or four indoor units. Mix and match units to fit your room size and decor. This four-port system offers a combined BTU connectivity rating of up to 40,000 BTUs. With a focus on energy efficiency, this mini split system offers a high SEER rating and is Energy Star Qualified when used with non-ducted indoor units such as wall units and ceiling cassettes.

The improved heating range on this system allows for operation in the heat mode when outdoor temperatures are as low as -13°F. With heating possible when it is that cold, this unit is a feasible option as a primary heat source for much of the country. And, if you need to keep an area cool even when it is cold outside, this system will operate in the cooling mode with temperatures as low as 14°F.

Each unit comes with its own remote or thermostat giving you the utmost in comfort flexibility. Each space can be adjusted individually or completely off. Another advantage of adding a mini-split system like the LMU300HHV is the ease of installation. No ductwork is needed and, while each indoor unit requires a line set and wire (sold separately), only a small 3” hole is required to connect each indoor unit to the outdoor unit.

In addition to being an energy efficient way to heat and cool your home, the LMU300HHV outdoor unit offers many other standard features including a variable speed inverter compressor, defrost/deicing capabilities, three minute restart delay, and a self diagnosis system. The LG Multi-F compressor uses a soft start in an effort to reduce power surges on the electrical system. The outdoor unit will operate in the cooling mode when the outside temperature is as low as 14°F. In the heating mode perform with temperatures ranging from -13°F to 75°F. To top it all off, it uses environmentally friendly R-410A refrigerant and is pre-charged for up to 98 feet of line.

Net Weight (lbs.): 152

Number of Zones: 2; 3; 4

Maximum Number of Indoor Units: 4

EER: 12.5

SEER (non-ducted indoor units): 20

SEER (ducted indoor units): 17.5

SEER (ducted & non ducted): 17.5

Energy Star: Yes

Cooling Amps: 16.7

Cooling BTUs: 30000

Includes Heat Pump: Yes

Heat Pump BTUs: 28600

Heat Pump Heating Amps: 15.9

HSPF (non-ducted): 11

Outdoor Unit Noise Level (dBA): 55

Voltage: 208-230V

Circuit Breaker Size (Amps): 25

Operating Range - Cooling: -4° F ~ 118° F

Operating Range - Heating: -13° F ~ 75° F

Min. Outdoor Temp for Heat °F: -13

Inverter Technology: Yes

Pipe Length (No Addl Refr Req): 98.4

Max. Pipe Length/Zone (ft.): 82

Outdoor Unit Width (in.): 37.406 "

Outdoor Unit Depth (in.): 13 "

Outdoor Unit Height (in.): 32.844 "

Outdoor Unit Weight (lbs.): 152

Certifications: AHRI Certified

Parts Warranty: 10 Years

Compressor Warranty: 10 Years

Labor Warranty: None

The 14300 BTU standard wall indoor unit comes with a wireless LCD remote, batteries, holder and holder hardware as well as all installation hardware needed.

The Standard Wall Unit is also available in several different sizes: 7,000 BTUs (LMN078HVT), 9,000 BTUs (LSN090HSV4), 12,000 BTUs (LSN120HSV4), 18,000 BTUs (LSN180HSV4), and 24,000 BTUs (LMN248HVT).

Features of the Standard Wall unit include:

LG Smart AC WiFi compatible

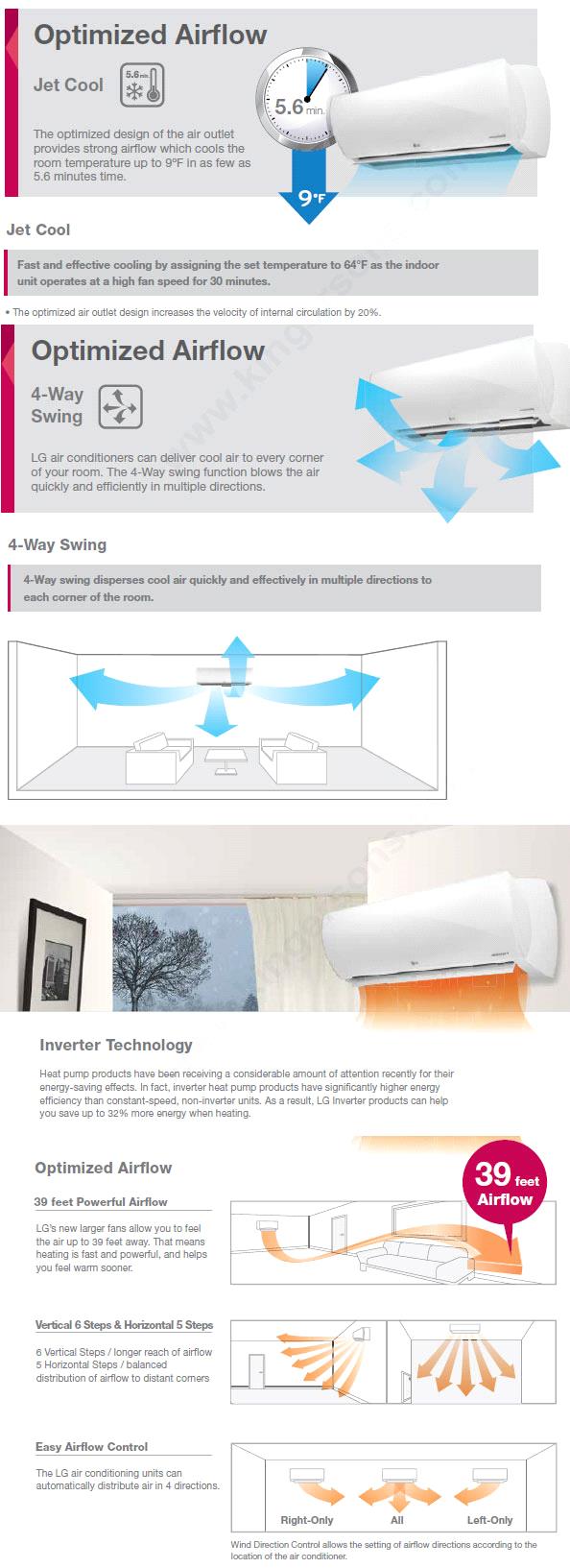

Inverter Technology: inverter heat pump air conditioners use a variable speed compressor, rather than the constant speed found in conventional ACs. Instead of shutting off once the temperature is achieved, the inverter compressor continues to operate at a low speed to maintain the temperature. It is quieter to operate and uses less energy than conventional air conditioners.
Chaos Swing: Electronically controlled louvers and fan speeds create a more natural, random air flow thereby reducing temperature stratification.
Jet Cool/Jet Heat: Operates at high speed for up to 30 minutes to quickly cool a room down to 64°F
Self-Cleaning Indoor Coil: Drives dirt and moisture from coil surface leaving it clean and fresh smelling.
Auto Operation (Artificial Intelligence): Provides three levels of comfort from which to choose. Temperature and fan speed will set automatically.
Auto Restart Operation: Automatically restarts a unit to programmed setting when the electricity comes on after a power failure.
24 Hour On/Off Timer

The Multi F Max System must be installed by a qualified, licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.

Indoor Unit Type: Wall Mount

Cooling BTUs: 14300

Includes Heat Pump: Yes

Heat Pump BTUs: 16500

CFMs: 371 / 318 / 247 (H / M / L)

Fan Speeds: 3

Room Size Coverage: Large 550 - 800 Sq. Ft.

Min. Indoor Noise Level (dBA): 34

Indoor Noise Level (dBA): 43 / 39 / 34 (H / M / L)

Control Type: Hand Held Remote

Wired Thermostat Optional: Yes

Condensate Connection Size: 5/8"

Line Set Liquid Line: 1/4"

Line Set Suction Line: 3/8"

Width (in.): 34.875 "

Depth (in.): 8.25 "

Height (in.): 11.25 "

Net Weight (lbs.): 20

Parts Warranty: 10 Years

Labor Warranty: None

Warranty Detail: The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at www.lg.com

Warranty From The Manufacturer - Only applies to units installed by licesensed HVAC Or Air Conditioning company.

5 years parts
7 years compressor
LG Electronics, Inc. (“LG”) warrants your LG Duct-Free Split Air Conditioner (“product”) against defect in materials or workmanship under normal household use, and during the warranty period set forth below, LG will, at its option, repair or replace the product. Replacement part(s) will meet intended fit and function of the original part(s). Replacement parts are warranted for the unexpired portion of the original warranty period. This limited warranty is valid only to the original retail purchaser of the product while the system remains at the original installation site, and is not assignable or transferable to any subsequent purchaser or user. Note: This limited warranty applies to parts only and does not cover labor.

COMPLETE DETAILS:

If you received a product that is "Dead On Arrival" we will replace it with brand new unit. You have 15 days from the date of delivery to notify us of the same.

Please make sure that you have an invoice from the licensed HVAC (or air conditioning company) with our model number AND serial number to receive any warranty. Replacement parts will be shipped and credit will be given when the part is returned to supplier. You will not receive credit for replacement units or warranty parts without proper documentation. Proper documents include an invoice from us and an invoice from a licensed installer. Our invoice will be emailed to you with the tracking number that you can print and save for future reference.

NO LABOR. THESE LIMITED WARRANTIES DO NOT INCLUDE LABOR or any other costs incurred for service, maintenance, repair, removing, replacing, installing, complying with local building and electric codes, shipping or handling, or replacement of the System, compressors or any other parts. For items that are designed to be maintained or replaced by the owner, the owner is solely responsible for all labor and other costs of maintaining, installing, replacing, disconnecting or dismantling the System and parts (such as filters or belts) in connection with owner-required maintenance. Air filter cleaning and/or replacement for each applicable indoor unit are owner-required maintenance, and labor for this procedure is not covered under warranty. Please consult the applicable technical documentation for air filter cleaning and other maintenance procedures.

D. Proper Installation. This Limited Warranty applies only to Systems that are installed by contractors who are licensed for HVAC installation under applicable local and state law, and who install the Systems in accordance with (i) all applicable building codes and permits; (ii) LG’s installation and operation instructions; and (iii) good trade practices.

BEFORE REQUESTING SERVICE, please review the applicable technical documentation to insure proper installation and correct customer control adjustment for the System. If the problem persists, please arrange for warranty service.

1. TO OBTAIN WARRANTY PARTS SERVICE:

(a) Contact the licensed contractor who installed the System or the nearest licensed contractor, dealer or distributor of any defect within the applicable warranty time period.

(b) Proof of the installation date by a licensed contractor is required when requesting warranty service. Present the sales receipt, building permit or other document which establishes proof and date of installation. Otherwise, this Limited Warranty shall be deemed to begin one hundred twenty (120) days after the date of manufacture stamped on the System. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF COVERAGE UNDER THIS LIMITED WARRANTY. However, please return the Owner Registration Card so that LG can contact you if a question of safety arises.

(c) This Limited Warranty applies only while the System remains at the site of the original installation and only to locations within the continental United States, Alaska and Hawaii.

2. THIS LIMITED WARRANTY DOES NOT COVER: property damages, malfunction or failure of the System, or personal injury caused by or resulting from: (a) accident, abuse, negligence or misuse; (b) operating the System in a corrosive or wet environment containing chlorine, fluorine or any other hazardous chemicals; (c) installation, alteration, repair or service by anyone other than a licensed contractor or other than pursuant to the manufacturer’s instructions; (d) improper matching of System components; (e) improper sizing of the System; (f) improper or deferred maintenance contrary to the manufacturer’s instructions; (g) physical abuse to or misuse of the System (including failure to perform any maintenance as described in the Operation Manual such as air filter cleaning, or any System damaged by excessive physical or electrical stress); (h) Systems that have had a serial number or any part thereof altered, defaced or removed; (i) System used in any manner contrary to the

Operation Manual; (j) freight damage; or (k) damage caused by force majeure or other factors such as power surge damage caused by lightning and fluctuations in or interruptions of electrical power.

3. THIS LIMITED WARRANTY ALSO EXCLUDES: (a) SERVICE CALLS WHERE NO DEFECT IN THE SYSTEM COVERED UNDER THIS WARRANTY IS FOUND; (b) System installation or set-ups; (c) adjustments of user controls; or (d) Systems purchased or installed outside the continental United States, Alaska and Hawaii. Consult the operating instructions for information regarding user controls.

4. This Limited Warranty shall not be enlarged, extended or affected by, and no obligation or liability shall arise or grow out of, LG providing, directly or indirectly, any technical advice, information and/or service to Owner in connection with the System.

5. EXCEPT AS OTHERWISE PROVIDED IN THIS LIMITED WARRANTY, LG MAKES NO OTHER WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE SYSTEM. LG DISCLAIMS AND EXCLUDES ALL WARRANTIES NOT EXPRESSLY PROVIDED HEREIN AND ALL REMEDIES WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE. NO ONE IS AUTHORIZED TO CHANGE THIS LIMITED WARRANTY IN ANY RESPECT OR TO CREATE ANY OTHER OBLIGATION OR LIABILITY FOR LG IN CONNECTION WITH THE SYSTEM. LG DISCLAIMS ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF ALL THIRD PARTIES (including, without limitation, the installing contractor) IN CONNECTION WITH OR RELATED TO THE SYSTEM.

6. UNDER NO CIRCUMSTANCES SHALL LG BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, SYSTEM FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING OUT OR RELATED TO THE SYSTEM WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF LG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL LG’S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE SYSTEM WITH RESPECT TO WHICH ANY CLAIM IS MADE.

7. Some states do not allow limitations on warranties or exclusions or limitation of damages, so the above limitations or exclusions may not apply.

8. This Limited Warranty gives the owner specific legal rights and the owner may also have other rights that vary from state to state.

9. This Limited Warranty is valid only in the continental United States, Alaska and Hawaii, and it is not transferable.

Delivery Acceptance, Returns, Exchanges and Cancellation Policy.

We truly appreciate your business and for the past 2 decades being in this business we have continued to do our best to earn customer trust with each transaction. We want you to be happy with your purchase.

100% Satisfaction is guaranteed with all your purchases. In case any of the RARE complications occur, we will handle them upto your best interest and satisfaction.

Delivery Acceptance Terms:
If you receive a package that seems damaged or dented, please open the package in front of the driver and after inspection if you see the product has a severe damage you can refuse the package and call us immediately. We will then arrange a new shipment (Free Replacement) ASAP.

Please note: If the box looks visibly damaged, the product inside may still be in perfect condition as they are well padded for shipping purposes.

PLEASE DO NOT SIGN OR REFUSE THE PACKAGE WITHOUT INSPECTING THE CONDITION OF THE PRODUCT INSIDE. Please take pictures if needed, accept or refuse shipment based upon the condition of the product in the box, not based upon the condition of the box. Please remember if you signed off on a delivery document, insurance cannot be filed if cosmetic damage is found at a later date, as it is considered to have happened after delivery at jobsite.

If you need to get in touch with KINGERSONS, please call KINGERSONS customer service number at 1-386-951-1722 OR email us with your query. AS PER OUR WEBSITE, BELOW IS OUR EXCHANGE/RETURN POLICY FOR YOUR REFERENCE.

DEFECTIVE EXCHANGE
If unit (any product) is defective, depending upon the brand you buy, it will be taken care of by manufacturer warranty. Usually they will send out the replacement part within 24 hours, if replacing part is not a solution, they would probably replace the whole unit if the product was found defective. Replacement will only be made with the same model, if customer decides to upgrade or downgrade to a different model, we'll treat it as a return and a new order.

* All returns should be in original packaging and in brand new condition. Installed products are not considered brand new and cannot be returned.

* All damaged returns and replacements must be requested within 24 hours after the receipt of the product. *

Before shipping the product back, you should request an RA# (Return Authorization number), without an RA# your package will not be accepted, will be refused and sent back by the warehouse.

RETURNS
For all returns, customer is responsible to ship product back to our warehouse at their own expense; restocking fee of 19% will apply regardless if defective and original shipping fee (from $69 to $189 depending upon the product you purchased) will not be refunded as it is paid to the trucking company's and they are non-refundable.

CANCELLATIONS
If you placed the order and you wanted to cancel the order BEFORE IT IS SHIPPED, we will gladly cancel your order and $15.99 cancellation fee will be charged and 3% credit card processing charges will not be refunded. Please make sure that you call us within few hours after the order is placed. We ship the items out same or next business day. We cannot process cancellations after the product is shipped out. It will be considered as a return instead once the product is shipped and you will need to pay the return charges. If the delivery of the shipment is refused above return policy will apply. Once the item is shipped, the shipping company will not refund us the shipping fee back and will charge us for shipping both ways, this will not be refunded if cancelled after the product is shipped and 19% restocking fee will apply.

THANK YOU ONCE AGAIN FOR SHOPPING WITH US!
